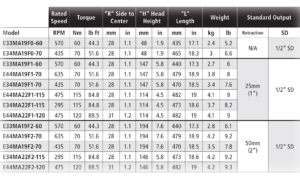

Angle Retractable Fixtured Tools (12 to 120 Nm)

MA19F0 Threaded Output Part No.
1/2” Square Drive (SD) 20D100002†
†Pick one of these options for 20D100002
1/2” SD Lock Pin 20D227800
1/2” SD Ball Detent 20D227801
MA19F0 Splined Output Part No.
1/2” Square Drive 20D100100ª
ªPick one of these options for 20D100100
1/2” SD Lock Pin 20D227800
1/2” SD Ball Detent 20D227801
1/2” Square Drive Anti-Vibration 20D100101
1/2” Double-Ended, Right Hand 20D100107
Flush Socket 17mm Max* 20D100106
MA19F1 Output Part No.
1/2” Square Drive 20D115901
1/2” SD X 2” Extension 20D115901
MA19F2 Output Part No.
1/2” Square Drive 20D112300
1/2” SD X 2” Extension 20D112301
MA22F1 Output Part No.
1/2” SD M4282
1/2” X 2” Extension M4306
1/2” X 2-5/8” Extension 20D117700
1/2” X 8” Extension M4466
MA19F1 Spring Part No.
Standard (7.4 lbs) A5313
Medium Duty (8.7 lbs) 20R201407
MA19F2 Spring Part No.
Standard (7.4 lbs) 20R201420
Medium Duty (10.2 lbs) 20R201421
Heavy Duty (36.7 lbs) 20R201430
MA22F1 Spring Part No.
Standard (3.1 lbs) M4282
Medium Duty (5.8 lbs) M4003
Heavy Duty (8.6 lbs) M4800
MA22F2 Spring Part No.
Standard (7.4 lbs) 20R201420
Medium Duty (10.2 lbs) 20R201421
Heavy Duty (36.7 lbs) 20R201430
Mounting Flange Part No.
E34M 20K100300
E44M 20K100400
Fixtured Handle Part No.
Standard Top 20H202300
90° Top 20S105100
