Description

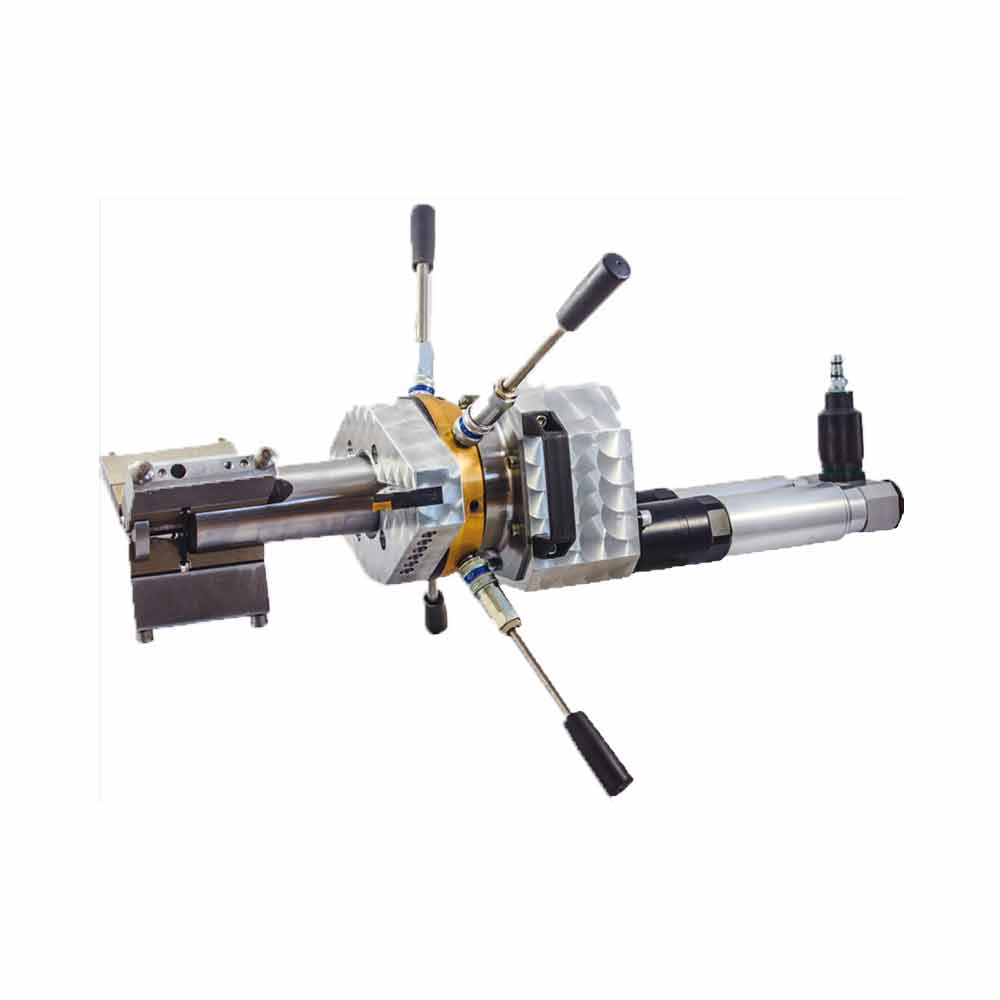

Pipe beveling machine Type MF4i

The pipe beveling machine MF4i is designed for the preparation of pipe ends, branches and headers. It is used to process pipe walls, to cut pipes or to chamfer welds at steam bloc vessels. The machine is equipped with two air motors. The clamping device of the machine is regulated by a ratchet and the feed device by a star handle.

Technical details:

  • Working range ID-ID: 2,283-8,626″ (58 – 217 mm)
  • Clamping range OD-OD: 2,283-8,543″ (58 – 219,1 mm)
  • Max. wall thickness: 0,984″ (25 mm)
  • Feed: 1,181″ (30 mm)
  • Weight: 17,9 kg with pneumatic motor
  • Weld preparation form: facing, beveling of butt weld and J prep weld
  • Feed: manuell
