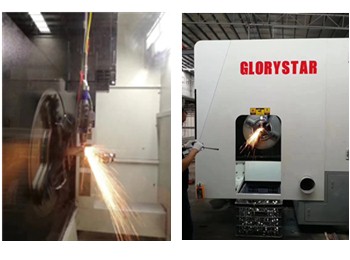

Tube Fiber Laser Cutting Machine

Specific Parameters

Model GS-6012TG/GS-6018TG/GS-6034TG
Brand Glorystar
Certificates CE,SGS,ISO

Description

Italian MK technology team took 11 months effort to develop, most of the key components imported from Italy, to create intelligent, nearly “zero” tailing, large diameter, high-speed professional cutting equipment, comparable to the Italian high-level brands.

【Advantages】—intelligent, automated, simplified

  1. Front chuck moved left and right flexibly, achieve nearly zero tail cutting
  2. High-end brand cutting head, wide angle swing groove cutting
  3. Automatic loading system, easy operation
  4. High-end CNC operating system from Italy (optional), (optional )five-axis linkage precision cutting
  5. Professional cutting control software, programming automation and nesting function, high compatibility
  6. Original imported high-end reducer and servo motor, smooth operation, low noise, reliable performance
  7. Italian imported from front and back chuck, precision for loading and clamping

Technical parameters

Model GS-6020TG
Laser Power (W) 500Z-8000(Optional)
Working Area (MM) φ20-φ200,Tube length 6000(1200Optional)
Total Power Consumption (KW) 12<50
Dimensions (MM) 13000*3000*3000
Weight (T) 20
Model GS-6018TG
Laser Power (W) 500-8000(Optional)
Working Area (MM) φ20-φ180,Tube length 6000mm
Total Power Consumption (KW) 12<50
Dimensions (MM) 10000*2300*2500
Weight (T) 8
