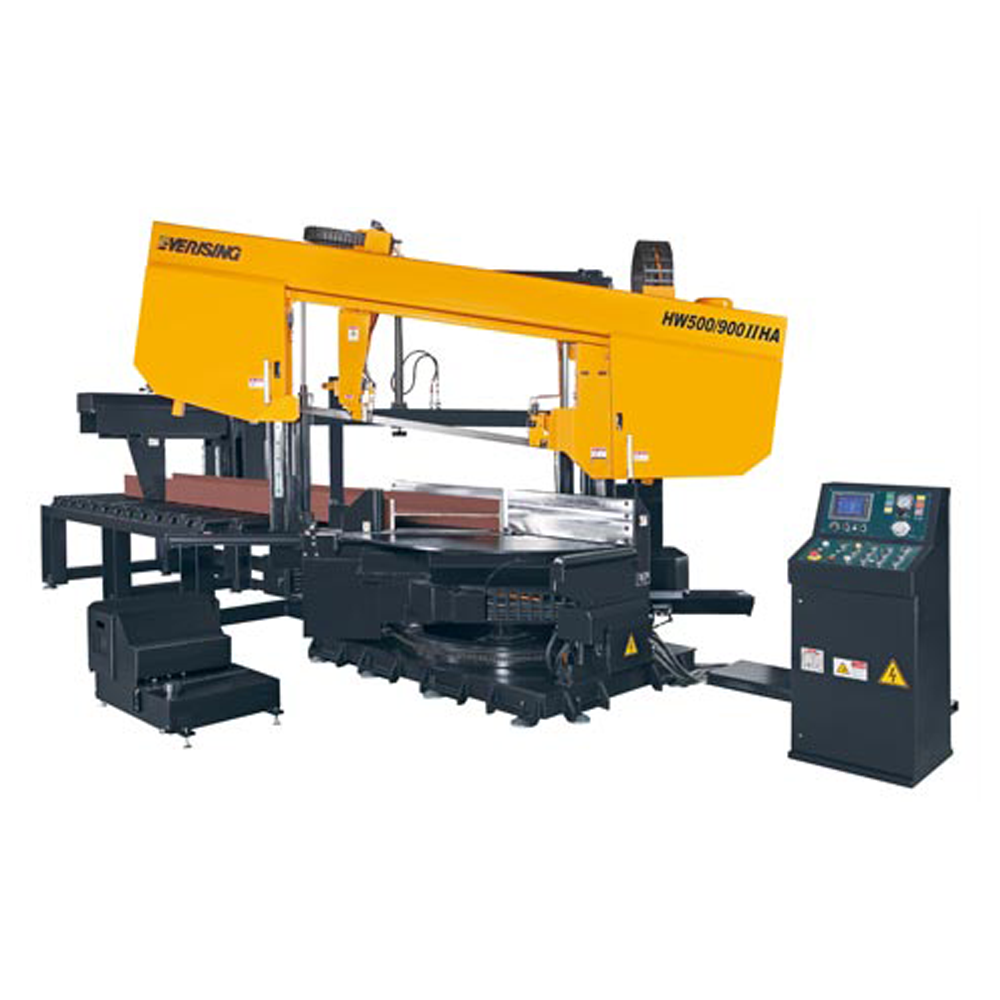

HW500/900II

HW500/900II

Category:

Description

STANDARD

  1. Ampere-meter and protecting detector for saw blade.
  2. Bi-direction angle cutting, -60° ~ 90° ~ 45°
  3. Feed pressure compensation unit.
  4. Hydraulic blade tension.
  5. PLC control for all electric and hydraulic functions.
  6. Infinitely variable blade speed control by inverter.
  7. Vertical clamping device.
  8. Full stroke vise clamping system.
  9. Powered movable guide arm with hydraulic lock.
  10. Power angle setting with LED display.
  11. Independent electric cabinet and control panel.
  12. Roller bearing carbide blade guide system with Hydraulic clamped.
  13. Idler wheel motion detector with blade stalling and breakage shut-off.
  14. Projection light. (Laser light)
  15. Automatic chip conveyor.
  16. Cutting lubrication by oil mist.
  17. Variable vice pressure.
  18. One M42 bi-metal saw blade.
  19. One set of tools and tools box.

OPTIONAL

  1. Power feeding roller table, 3M long.
  2. Dead roller conveyor, 3 M long.
  3. Out of square detector.
Model HW500/900II
Capacity 90° ● 500 mm
■ 900 x 500 mm (W x H)
±45° ● 500 mm
■ 580 x 500 mm (W x H)
-60° ● 375 mm
■ 375 x 500 mm (W x H)
Min Clamping 150 mm
Blade Speed 15 ~ 100 m/min
Blade Size 8300 x 54 x 1.6 mm
Motor Blade 5.5 kW (7.5 HP)
Hydraulic Pump 2.2 kW (3 HP)
Oil Mist 180 W (1/4 HP)
Wire Brush 90 W (1/8 HP)
Blade Tension Hydraulic
Angle Swivel Powerful with LED Display
Table Height 900 mm
Vise Clamping Type Hydraulic (Full Stroke)
Machine Weight 5750 kgs
Floor Space ( W x D) 4100 x 3650 mm
