Description
| Optional Equipment |
| Circle Cutting Atachment : dia. 400-2400 mm
Circle Track : dia. 40-360 mm inside : dia. 770-1150 mm outside Rail : 1800 mm |
IK-12 Max 3 <S Type>
| Travelling Speed | 80-800 mm/min(Low) to 240-2400(High) |
IK-12 Max 3<ML>
| Travelling Speed | 40-400 mm/min |

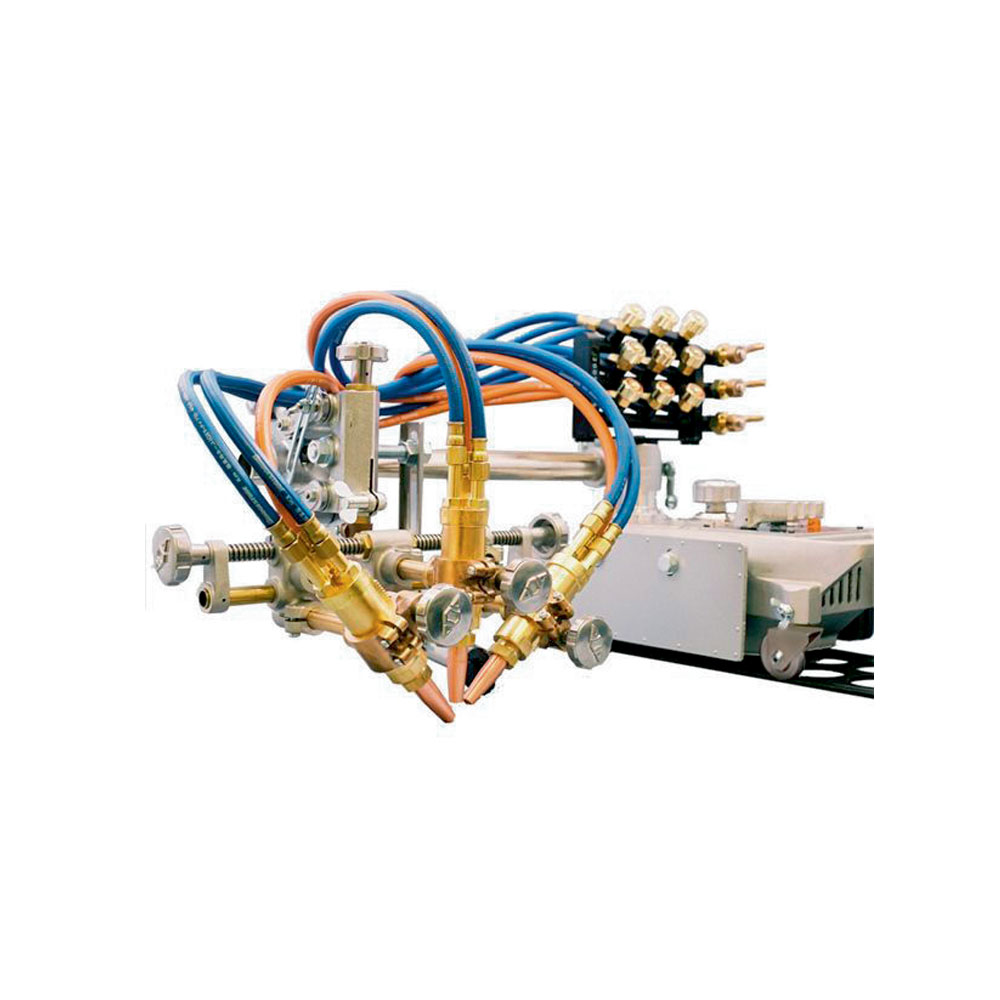

Torch Set for IK-12 Max 3
| Name | Specification | Purpose | Cutting Thickness |
| S-100 | Single torch set | For square or V bevel cutting | 5-30 mm |
| S-200 | 2 Torches of S-100 | For square X, Y, or X bevel cutting | 5-30 mm |
| SP-100 | Single torch with a plate rider | For square or V bevel cutting | 5-30 mm |
| SP-200 | 2 torches model SP-100 | For square X, Y, or X bevel cutting | 5-30 mm |
| SP-300 | 2 torches for V bevel cutting with a plate rider | For square X, Y, or X bevel cutting | 5-30 mm |
| SP-400 | 3 thorches for X bevel cutting with a plate rider | For square X, Y, X, or K bevel cutting | 5-30 mm |
| L-100 | Long torch set | For square or V bevel cutting | 5-30 mm |
| S-EPOCH 300 | Single torch set for Epoch-300 cutting tip | For thick plate cutting | 100-300 mm |
| S-EPOCH 600 | Single torch set for Epoch-600 cutting tip | For thick plate cutting | 300-600 mm |
| S-6023 | Single torch set for 6023 cutting tip | For thick plate cutting | 200-350 mm |
* Cutting Tip Type : 102(ACE) or 106(LPG), except for S-EPOCH 300, S-EPOCH 600 & S-6023.
Rail for IK-12 Max3
| Straight Track 1800 mm |
| Extreme Duty Track 1800 mm |
