Description

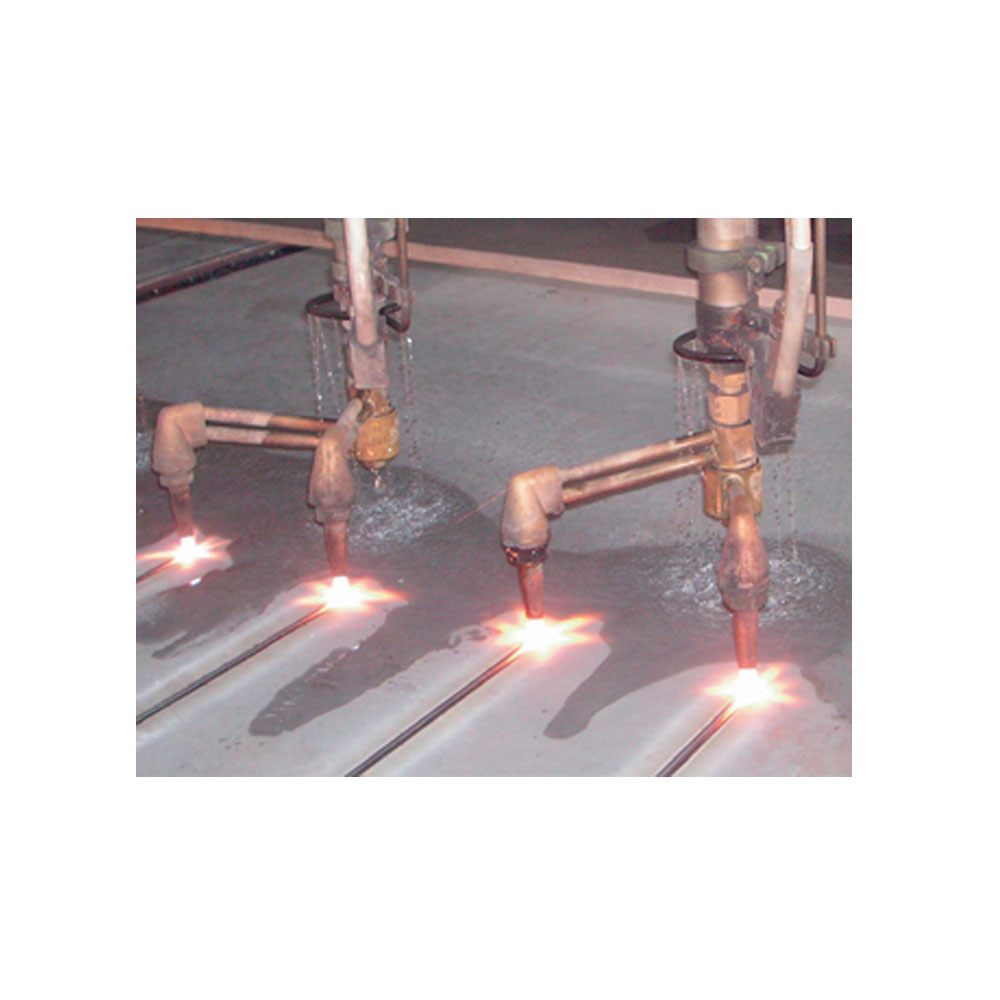

CNC OXY-FUEL & PLASMA CUTTING MACHINE
Heavy duty advanced CNC investment for high cutting productivity
Maxigraph
| Model | MAXIGRAPH-S | MAXIGRAPH-DE | MAXIGRAPH-DX | |
| Main Body Construction | Gantry Bridge / Dual-Side Drive | |||
| Operator Console | Left-hand use (Right-hand use is optional) | |||
| Drive Method | Rack and Pinion drive for X and Y axis. | |||
| Rail Span | 3000-4000 mm | 3500-6000 mm | ||
| Effective Cutting Width | 2100-3100 mm | 2600-5100 mm | ||
| Effective Cutting Length | Rail length minus 1750 mm | |||
| Torch Mounting System | Steel belt connection system | |||
| Cutting Speed | 6000 mm/min | |||
| Rapid Traverse Speed | 12000 mm/min | 15000 mm/min | ||
| Marking Speed | 10000 mm/min | 12000 mm/min | ||
| CNC Control System | KOIKE D430 | KOIKE D600 | KATANA OR FS-0I | |
| Max. No. of Torch Block | 4 | 6 | ||
| Min. Torch Distance (Oxy-Fuel) | 160 mm | 125 mm | ||
| Oxy-Fuel Cutting Thickness | 6-100 mm (Max. 50 mm by 4 torches) | |||
| Hose & Cable Bearer | Polymer Energy Chain system for Longitudinal & Traverse | |||
| Power Supply | 1-Ph. AC220V, 50Hz | 3-Ph. AC220V, 50Hz | 1 or 3-Ph. AC220V, 50Hz | |
| Optional accessories |
| Plasma Cutting, Line Marking, Water Spray, Auto Ignition, Hi-Lo Oxy-Fuel Manifold, Capacitance Height Sensor. |
