Mynuc

Description

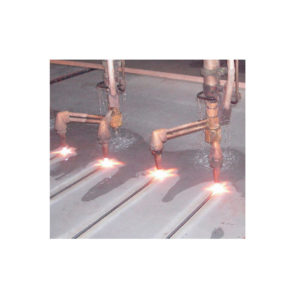

TWIN CUTTING ATTACHMENT

Torch option for Strip Cutting of Steel Plates

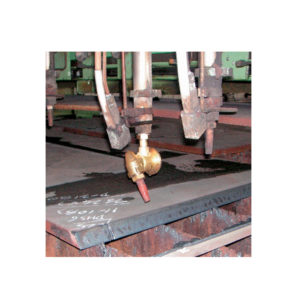

BEVEL CUTTING ATTACHMENT

Torch option for Beveling of Steel Plates

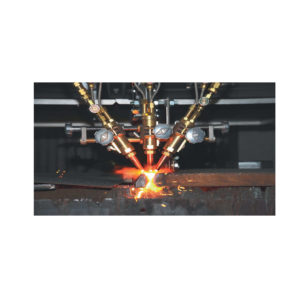

SP-400 TORCH SET

Torch option for X-Bevel cutting with a plate rider.

Model	4500	5000	5500	6000	6500	7000	7500	8000	8500	9000	9500	10000
Main Body	Gantry Bridge / Double Side Drive.
Operator Console	Left-hand use (Right-hand use is optional)
Drive Method	Rack and Pinion drive for X and Y axis.
Rail Span	4500	5000	5500	6000	6500	7000	7500	8000	8500	9000	9500	10000
Effective Cutting Width	3500	4000	4500	5000	5500	6000	6500	7000	7500	8000	8500	9000
Effective Cutting Length	Rail length minus 3000 mm
Torch Mounting System	Steel belt connection system or Carriage system
Cutting Speed	6000 mm/min
Rapid Traverse Speed	Plasma machine : Stand-alone dust collector type 54000 mm/min On-board dust collector type 36000 mm/min Oxy-Fuel & Plasma machine : 24000 mm/min
Marking Speed	Plasma machine : 36000 mm/min, Oxy-Fuel & Plasma machine : 24000 mm/min
CNC Control System	FANUC FS-31i / KATANA-CX / FS 30i for 3D Link bevel
No. of Oxy-Fuel Torch block	Maximum 12 torches
Oxy-Fuel Cutting Thickness	6 – 200 mm (Max. 50 mm by 4 torches)
Power Supply	Single Phase 100/110V, Three Phase 200/220V, 50/60 Hz
Hose & Cable Bearer	Polymer Energy Chain system for Longitudinal & Traverse
Installed plasma System	SUPER-400 Pro II / HPR-260XD / HiFocus Series

Optional accessories
Plasma Cutting, Line Marking, Water Spray, Auto Ignition, Hi-Lo Oxy-Fuel Manifold, Capacitance Height Sensor, Decoupling Holder for plasma torch, 3D Link device for plasma bevel cutting feature.
