Description

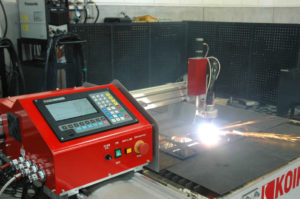

Portable CNC Cutting Machine
Features and Benefits
- CNC-integrated plasma control unit
Initial torch height sensor and arc voltage height control are integrated in the CNC, maintaining constant torch height throughout the cut.
- Simple operation
D421 CNC controller is easy to operate and has highly customizable parameters.
- Rigid Crossbar with steel guiding
Extra wide aluminium extrude crossbar with steel guiding system assures stable movement throughout the range.
- Lightweight longitudinal rail
High-precision aluminium alloy rail provides portability anquality cuts.
- Suitable for both plasma and oxy-fuel cutting
PNC-11 FLEX is designed for both oxy-fuel and plasma cutting. With optional Plasma to Oxy-Fuel conversion kit, PNC11 FLEX is allowing wide variety of cutting job to be performed.
PNC-11 FLEX is a flexible, productive, and affordable CNC cutting machine.
The new D421 controller is equipped with integrated plasma controller, allowing initial torch height sensing and torch height control during cutting. Designed with extra rigid aluminium construction achieving quality cuts and portability at once. Various configuration and options available to provide extended possibilities.
PNC-11 FLEX is a affordable CNC cutting machine, suitable for both oxy-fuel and plasma cutting.
Number of improvements have been made from its predecessor to increase performance and portability.
Plasma configuration
PNC-11 FLEX is compatible with air plasma systems
equipped with CNC interface for remote arc on/off and arc voltage output.
- CNC-integrated arc voltage torch height control (AVC) automatically controls torch height during cutting.
- Torch holder with Initial Height Sensor (IHS) and torch-break-away collision protection mechanism.
- Supports arc voltage output 50:1 or 1:1 (Raw voltage).
|

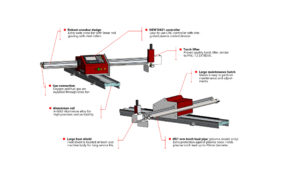

Mechanical design
PNC-11 FLEX is designed to perform and last.
- Thick aluminium plates are used for the machine chassis, providing rigidity and lightweight at the same time.
- Extra wide cross bar is nicely held by 4x steel rollers for smooth movement and durability.
- Linear rod guiding system is used on both X and Y axis.
- Long rail model available (7m effective cutting lengths)
|

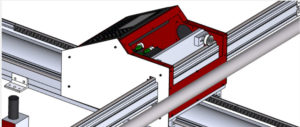

Maintenance
- Easy access to inside of the machine by large maintenance hatch.
- Proven-quality electrical parts. Most of electrical parts are common with other PNC-series machines.
Standard Accessories

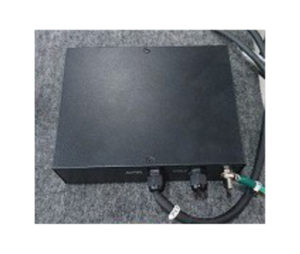

External voltage divider kit
Stock No.: T89000177
- Required to connect PNC-11 FLEX with plasma power source with raw arc voltage output (1:1).
- Includes external arc voltage divider box and necessary connection cables.

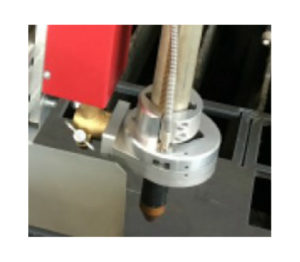

Universal plasma torch holder kit
Stock No.: T89001997
- Supports large plasma torch up to 45mm diameter. Suitable for Hypertherm Powermax 125.

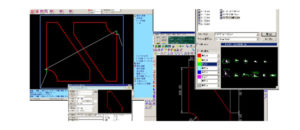

PNC-CAM software
Stock No.: SPC00315
A simple and easy to use CAD/CAM software designed for use
with Koike PNC series.
- DXF and DWG import.
- 2D CAD drawing and Creates NC data compatible with PNC-11 FLEX.
Optional accessories
Plasma to Oxy-Fuel conversion kit
Stock No.: depends on region
- Converts PNC-11 FLEX Plasma model into OxyFuel model.
- Includes oxy-fuel torch, torch holder and solenoid valves with cables.
|

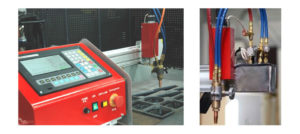

Oxy-Fuel configuration
(with optional Plasma to Oxy-Fuel conversion kit)Suitable to cut mild steel plates with thickness ranges
from 5 mm to 50 mm.
- Customizable automatic piercing sequence.
- Gas distributor at the torch is equipped with 3 x solenoid valves and regulation valves for fine flame adjustment and repeatability.
- Select Koike genuine nozzle for the best cutting result.(Separately sold)
|
| Type |
PNC 11-FLEX |
| 1530 |
1570 |
| Effective Cutting Area |
1500 x 3000 mm |
1500 x 7000 mm |
| Rapid Travel Speed |
5000 mm/min |
| Minimum Cutting Speed |
4000 mm/min |
| Control Axis |
2-axis (X and Y) |
| Motor : X-axis and Y-axis |
Stepping Motor |
| Motor: Torch Lifter |
DC Motor |
| Driving Method |
Rack and Pinion |
| Rail System X-axis and Y-axis |
Linear rod guiding |
| Head Shield |
Provided at side of the machine body and at torch lifter |
| Input Voltage |
Selectable with internal switch.
Single phase 100 – 120V / 220-240V |
CNC:
Main features |
Model |
KOIKE D421 |
| Display |
7 inch colour |
| Program Input |
Manual MDI or by USB |
| Preinstalled Cutting Patterns |
47 shapes |
| Program Format |
EIA format |
| Functions |
Pattern nesting, rotation, mirror, recovery,
piercing selection and more. |
| Plasma Configuration: Features |
Plasma system |
Not included |
| Maximum Cutting Thickness |
Depends on Plasma power source |
| Initial Torch Height Control |
Yes |
| Torch Collision Protection |
Yes |
| Arc Voltage Torch Height Control |
Yes |
| Ratio of Arc Voltage Output for AVC |
50:1 : External voltage divider is NOT required
1:1 : External voltage divider is REQUIRED |
*Other machine sizes are also available upon request. Please contact to us for more information.
*Applicable Plasma system is Non frequency arc start type plasma system.
| Standard Accessoris |
| External Voltage divider kit |
Voltage output |
For raw arc voltage output (1:1) |
| Includes |
Includes external arc voltage divider box and connection cables. |
| Universal plasma torch holder kit |
Plasma torch holder diameter |
Ø35-45 mm |
| Software |
Version |
KOIKE PNC-CAM 2A Software |
| CAD drawing |
2D CAD software optimized for use with PNC-series |
| CAD data import |
DXF, DWG |
| CAD data saving |
DXF, PT (Koike part registration format) |
| Auto nesting function |
Yes |
| Auto sequence function |
Yes |
| Others |
Basic tool |
1 Set |
| Manual |
1 Set |
| Optional Accessoris |
| Plasma to Oxy-Fuel conversion kit |
Maximum cutting thickness |
50 mm |
| Number of solenoid valves |
Total 3 pcs, 1 for each gas line |
| Piercing sequence |
Customizable torch up/down and gas control timi |
*Cutting tip is not included. Please purchase KOIKE Original 100type cutting tip.
