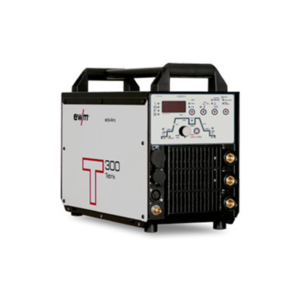

Tetrix 300 Comfort 2.0 puls 8P TM



Modular DC TIG inverter welding machine, gas- or water-cooled
Comfort 2.0 control, simple operation with click wheel
TIG welding
Features characteristics for EWM activArc and EWM spotArc at no extra charge
Electronic HF start
TIG lift arc welding without HF
TIG average value pulsing: the preset welding current is maintained at all times, so particularly suitable for welding as per welding procedure specification
TIG automated pulsing with automatic specification of required pulse parameters
Pulsed TIG welding in Hz and kHz range up to 15 kHz
100 free memory locations for recurring welding tasks (JOBs)
Non-latched/latched operation
Reduced secondary current accessible using torch trigger
Spot welding/tack function (spotArc/spotmatic)
Adjustable up-slope and down-slope time
Adjustable gas pre- and post-flow time
MMA welding
MMA average value pulsing
100 free memory locations for recurring welding tasks (JOBs)
Adjustable hot start current and hot start time
Adjustable Arcforce
Antistick function
Gas-cooled or optionally water-cooled with cool 41 U31 cooling unit
Energy-saving thanks to high efficiency and standby function
Excellent torch cooling, resulting in cost savings on consumables due to high-performance centrifugal pump and 4-litre water tank (cool 41U31 cooling unit)
Connection capability for remote control and function torch
Trolly 35.2-2, Trolly 55-5 and Trolly 55-6 trolleys available
Optional network connectivity with ewm Xnet software via LAN or WiFi gateway
PC interface for PC300 XQ software

Setting range for welding current 5 A – 300 A
Duty cycle at ambient temperature 40° C  25° C
35% 300 A
45% 300 A
60% 260 A 275 A
100% 210 A 225 A
Open circuit voltage 63 V
Mains frequency 50 Hz / 60 Hz
Main fuses 3 x 16 A
Main voltage (tolerances) 3 x 400 V (-25 % – +20 %)
Max connected load 11.4 kVA
Recommended generator power 15.4 kVA
Cos φ 0.99
Efficiency 88%
Dimension 539 x 210 x 415 mm
EMC class A
Insulation class H
Protection class IP23
