Weaving Unit

Description

The compact and lightweight unit can be easily mounted on an existing portable welding carriage, manipulator, etc.

Electronic control makes operations extremely simple.

Weaving requirements, swing width, and origin (center of swing width) may be changed even during welding.

Setting values are digitally displayed for easy reference.

Ideal for welding systems that use welding jig

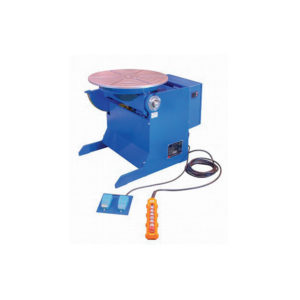

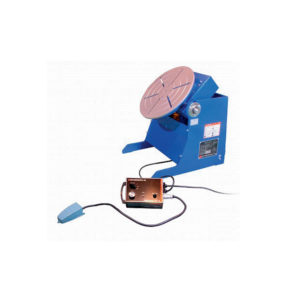

Use in combination with LD-R positioner and torch stand

Ideal for portable welding carriages

Control Box

Model	WU-1	WU-2
Weight	1.2kg (not including cable connector)
Operating Parameters	(1) Swing width: 3.0 – 25.0 mm (2) Frequency: 3 – 120 swings/min
	(3) Dwell time (left/center/right): 0.0 – 3.0 sec
Switches	(1)Power (2) Interlock/standalone switch* (3) Arc (4) Travel to origin
	(5) Setting value display panel (6) Swing width setting key (7) Frequency setting key
	(8) Dwell time setting key (9) Setting dial (10) Start (11) Stop
Operating Method	Remote control	Attachment
Interlocking Function	No	Yes
Center Position	Can be changed during weaving
Swing Width	Can be changed during weaving
Input Power Supply	AC100V, 50/60Hx (single phase)
Controller Size	90(L) x 95(W) x 230(H) mm	90(L) x 95(W) x 180(H) mm

Main Unit

Model	WU-1	WU-2
Weight	2.2kg
Forward/Reverse	20 Degree
Groove Angle	0 – 45 Degrees
Rotation Torque	Max. 100kg.cm (When setting weaving operations, always take into account the state of the torch cable along with other conditions.)
Main Unit Size	175(L) x 85(W) x 230(H) mm	175(L) x 85(W) x 230(H) mm
