| Model Name | Wel-Handy Multi II (Tack) |
| Machine Weight | Standard Magnet Model : 6.9 kg
Strong Magnet Model : 7.5 kg |
| Machine Dimension | 255(L) x 277(W) x 264(H) |
| Traction force | 16 kg |
| Gap (F.L ~ Base Board) | 6 mm |
| Magnet Up and Down Mechanism | Magnet Lever |
| Driving Method | 4-Wheel Driving Rubber Roller (Chain Transmission) |
| Magnet-Type | Permanent Magnet |
| Traverse Speed | 50 to 1500 mm/min |
| Tracing Method | Guide Roller(being pushed against vertical plates) |

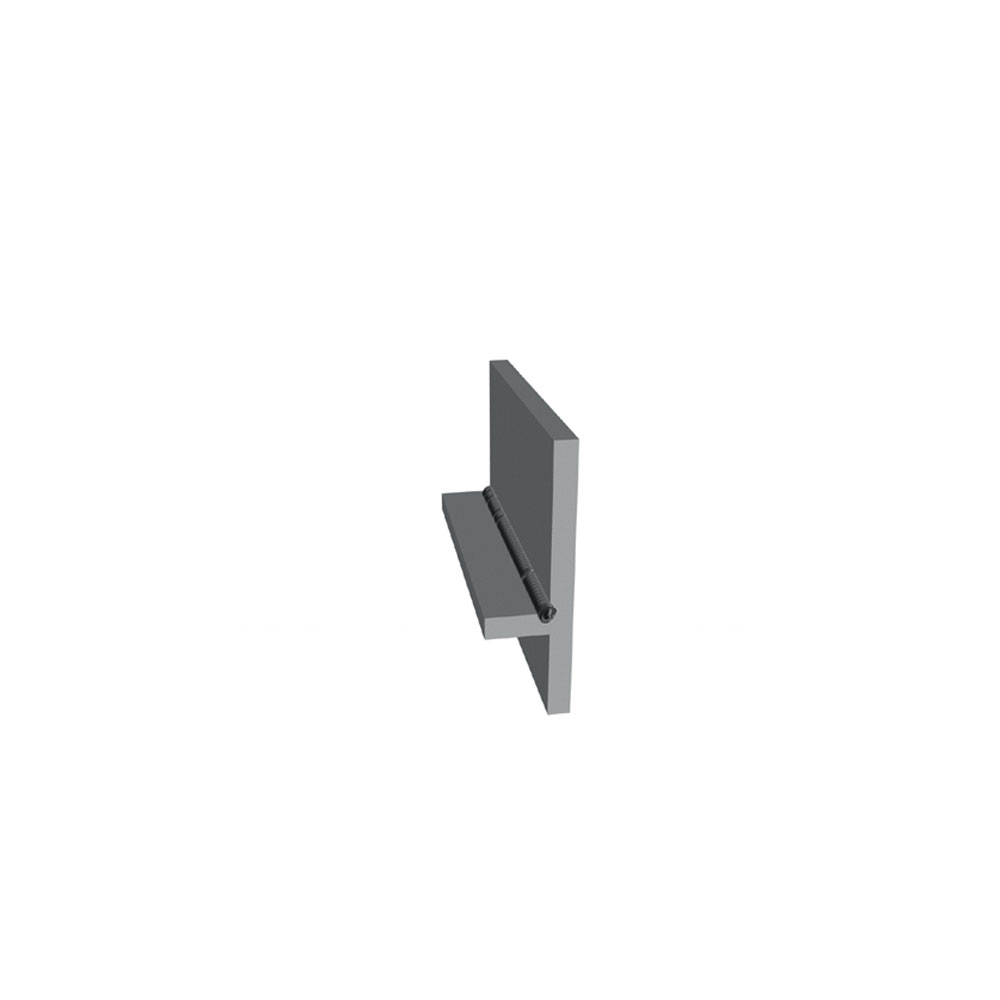

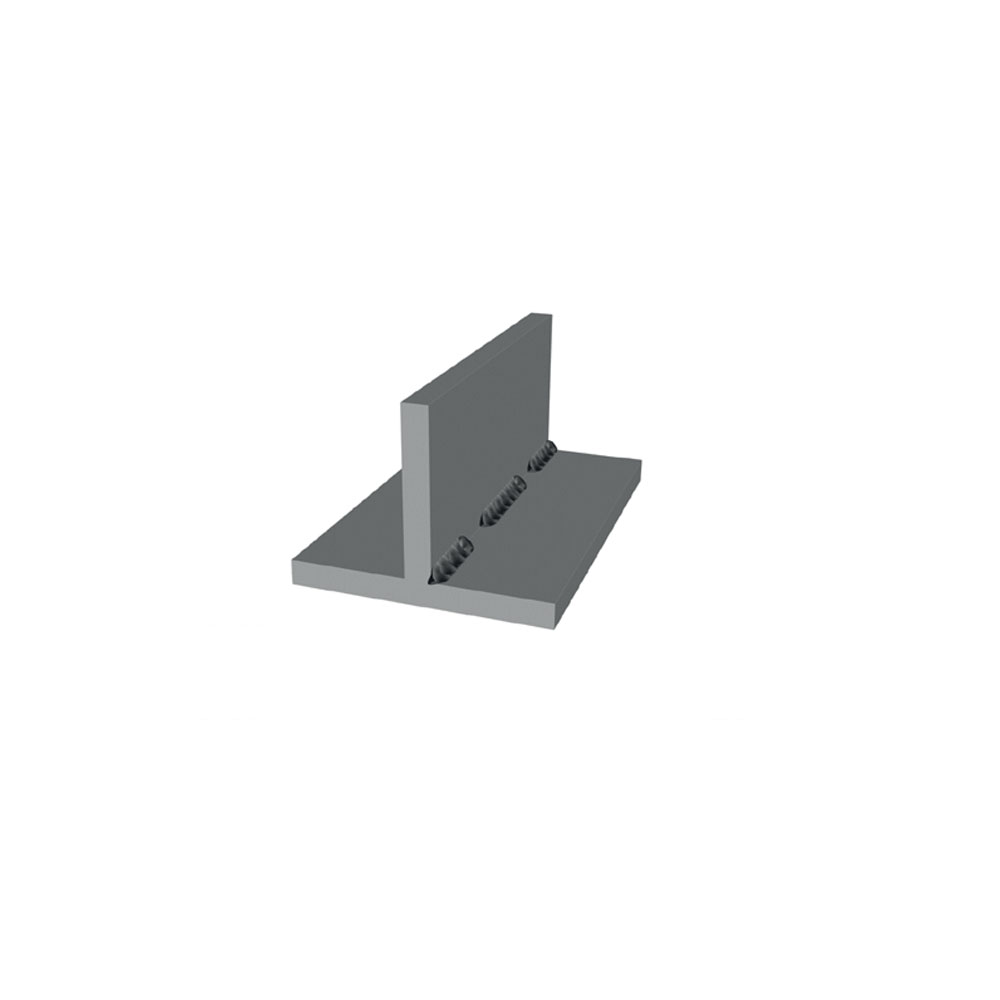

| Applied Posture | Standard Magnet Model : Horizontal Position Fillet Welding
Strong Magnet Model : Vertical Position Fillet Welding- |
| Torch Angle | 40° to 55° |
| Up and Down | 45 mm |
| Forwar and Backward | 45 mm |
| Forward/Backward Angle | 5° to angle at both Forward/Backward |
| Automatic Stop function | Limit Switch (equipped at both sides of Carriage at FL +20 mm height |
| Fine Adjustment of Carriage Position | Included |
| Non-Welded Portion | Appoximately 270 mm |
| Power Cable | Y-Branch Cable (Power and Signal Cable Integrated)
· Carriage to Branch : 6 m · Branch to Power : 10 m · Branch to wire Feeder : 0.5 m (with matching Panasonic-Type Connector) *Please consult when using welding machine other than Panasonic. |
| Welding Torch | Straight WHM (C) -350S & 500S
Curved 350A & 500A |
| Torch Hold Diameter | Straight Torch Holder : 20 mm
Curved Torch Holder : 16-20 mm Diameter |
| Motor | DC Motor with Encoder |
| Input Power | AC 100 – 240 V, 50/60 Hz |
WEL-HANDY MULTI II TACK
